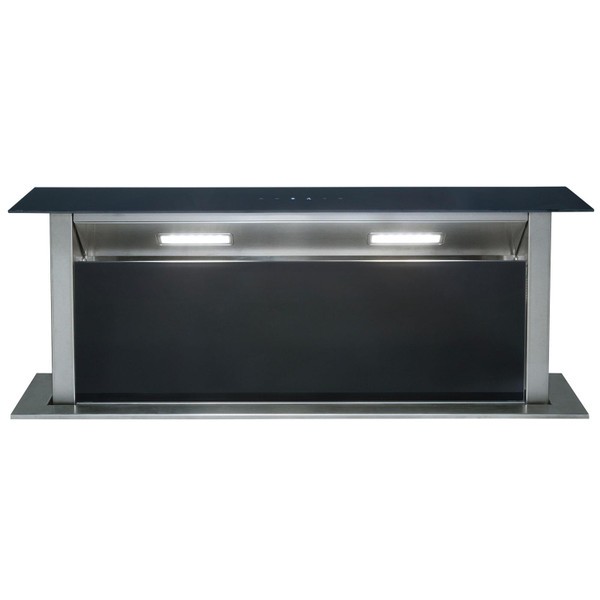

The OEM DD90BL is a 90cm downdraft extractor that combines high functionality with a striking, stylish design. It features 3 speed settings with a powerful extraction rate of 850m³/hour and when not in use, the appliance hides underneath the worktop to give a minimalist, modern look. The appliance is easy to use with the black touch control fascia and comes with a 15 minute delay timer.

This downdraft extractor comes with the flexibility to be used for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.

This product boasts a 5 Year Parts & 2 Year Labour Guarantee* to give you the reassurance you need when buying a new appliance.

FEATURES

3 variable speeds
Soft touch controls
15 minute delay timer
Ducted or re-circulated installation
2 x aluminium grease filters
2 x 3W LED lamps

OPTIONAL ACCESSORIES

CO8 re-circulation charcoal filters
D5 & D7 external ducting kits

FITTING NOTES

Please ensure there is enough room to accommodate the clearance needed between the appliance and the hob.
Minimum distance between electric hob and extractor (mm): 30
Minimum distance between the end of the unit and the extractor (mm): 20
(please note that if the hob manual states the clearance must be greater than 30mm, this will override these instructions)

TECHNICAL SPECIFICATION

Ducting outlet diameter (mm): 150
Extraction rate (m³/hour): 850
Noise level (dBa): 67
Fuse rating (A): 3
Product dimensions (mm): W880 x D360 x H720 - 1045

Please note that there is no plug supplied with this product
This appliance can not be used with gas hobs
*Guarantee subject to registration within 30 days of purchase
